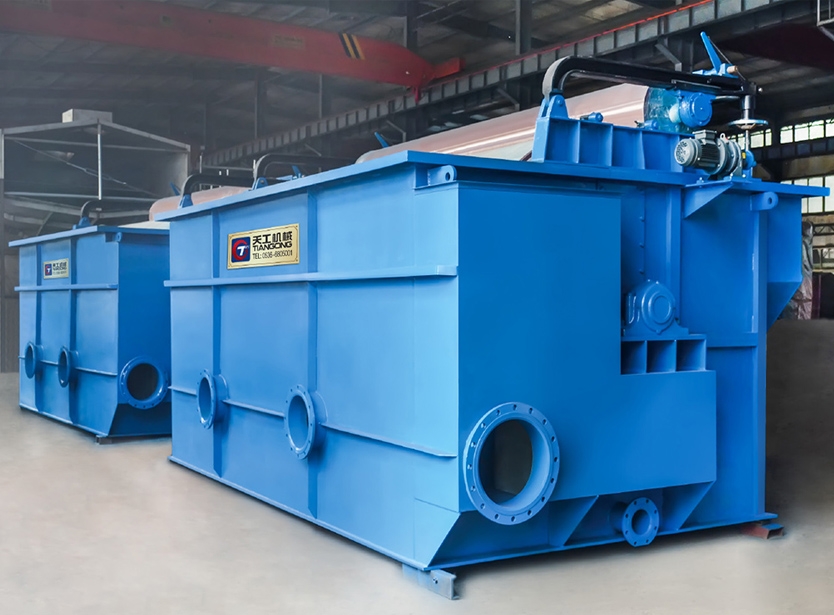

圆网浓缩机Gravity thickener
用途：
圆网浓缩机用于制浆造纸行业对低浓浆料的洗涤与浓缩。
Application：
Cylinder thickener used for washing and thickening of low consistency pulp in paper making and pulping process. It is gravity filtration
equipment.
型 号Model | ZYW5 | ZYW10 | ZYW15 | ZYW20 | ZYW25 | ZYW30 | ZYW35 | ZYW40 | |
转鼓过滤面积 Drum filter area (m2) | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | |
进浆浓度Inlet consistency(%) | 1-2 | ||||||||
出浆浓度Outlet consistency(%) | 4-6 | ||||||||
生产能力 Capacity | 稻麦草浆Rice and wheat straw pulp | 5-8 | 10-15 | 15-22 | 20-30 | 25-38 | 30-45 | 35-52 | 40-60 |
废纸浆 Waste paper pulp | 8-10 | 15-20 | 22-30 | 30-40 | 38-50 | 45-60 | 52-70 | 60-80 | |
苇浆 Reed pulp | 10-12 | 20-25 | 30-38 | 40-50 | 50-62 | 60-75 | 75-88 | 86-100 | |
化学木浆 Chemical wood pulp | 15-18 | 30-35 | 45-52 | 60-70 | 75-88 | 90-105 | 105-122 | 110-128 | |
配用动力Motor power kw | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 | 15 | 18.5 | |
